Have you ever wondered how the mechanical movements of the machines and the mechanized things occur? The arms of robots, the slides of our DVD players, the dispensers in the ATMs, and the batter dispenser in a cookie factory everywhere, the secret behind the magical precise movements is the sliding champ LM slide bearing (ลูกปืนสไลด์ LM, which is the term in Thai). Let’s learn more about this engineering marvel.

What Are These Bearings?

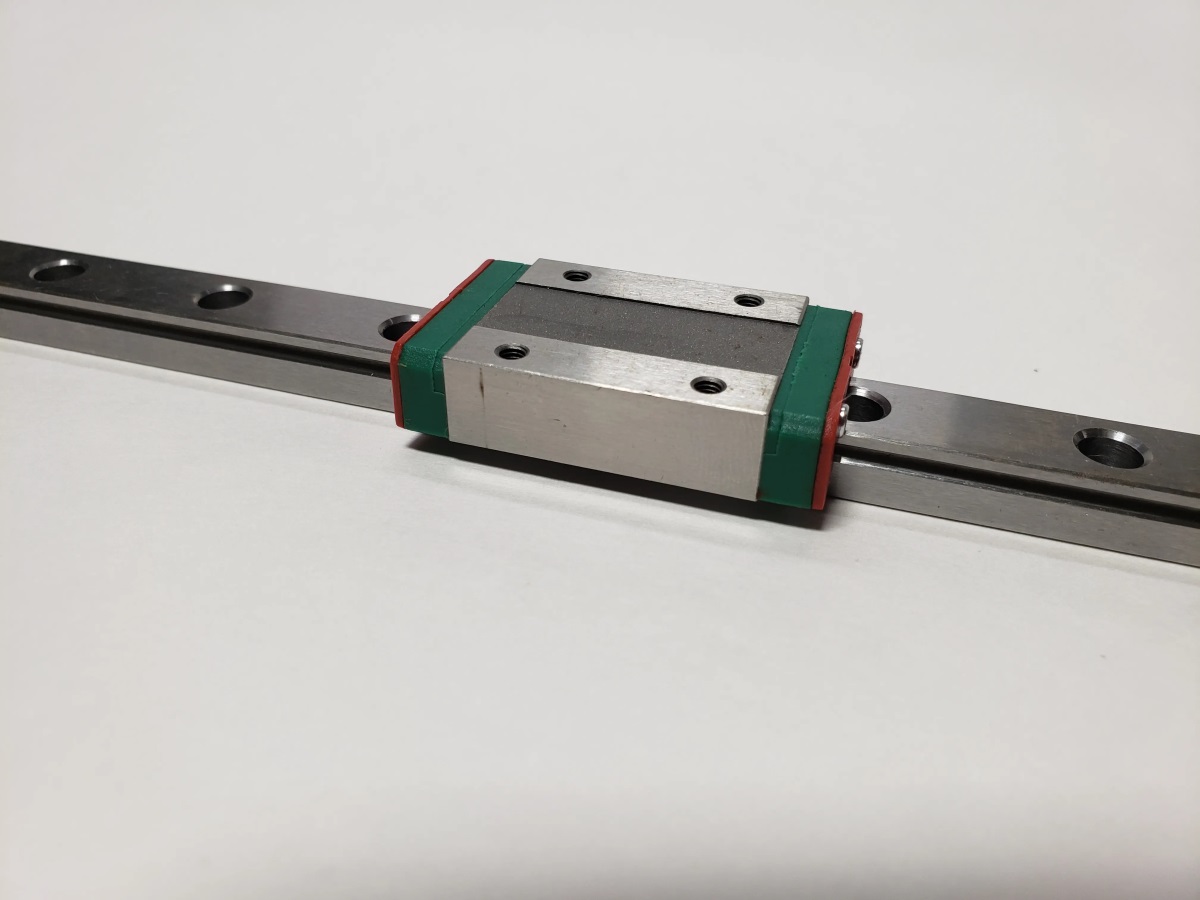

Linear Motion slide bearing, also known as slide bearing or linear motion bearing, is a device that helps in the smooth and precise linear motion of machinery parts. These bearings reduce friction and make linear motion easy.

The Design: How Are Slide Bearings Constructed?

Like any bearing, if you have ever seen, LM bearings consist of two main parts: a stationary outer part, i.e., the outer sleeve, and an inner sleeve that is stationary. The inner sleeve is attached to a shaft that helps it create the smooth movements of the machinery parts.

The Application: Where Are These Tools Used?

Slide bearings are used in a number of industries. Manufacturing, automation, robotics, packaging, and handling are some common application areas for these bearings. Apart from these, wherever you see precise, rhythmic linear motion, you can expect one there.

In manufacturing industries, LM bearings are controlled and operated by CNC machines. CNC stands for computer numerical control. These machines make sure the complex steps of the manufacturing are followed with precision using linear motion bearings.

• The landing gears of airplanes, the ATM, and many other machinery have LM bearings as their components.
• Laser, telescopes, microscopes, and MRI machines have LM bearings for precise and accurate optical positioning.
• The conveyor belts used for handling goods also have these bearings.
• The moving hands and feet of robots, too, have such bearings in them.

So, almost every machine that moves back and forth has some kind of LM bearing.

Conclusion

The LM slide bearing is a tool that keeps the mechanical world moving. From manufacturing to handling to aerospace and robotics and everything in between, incorporate these tiny sliders for achieving linear motion.

These bearings function by reducing friction and making heavy and complex movements seamless. Since there is less friction, there is less application of mechanical energy, hence making the job energy efficient.

The orientation of these bearings is also versatile. These can be placed in multiple angles and numbers into a machine: vertical, horizontal, parallel, or perpendicular.

Hence, we can say that the engineering industry will go a long way with these linear motion slide bearings.
